AC vs DC Charging: What’s the Difference?

Electric cars run on direct current (DC) electricity, but our homes and power grids use alternating current (AC). In simple terms, AC power changes direction many times each second, while DC flows steadily in one direction. Almost all wall outlets and public charging points supply AC, and car batteries store DC.

This means an EV must convert AC from the grid into DC before it can store energy in its battery. Throughout this article, we’ll explain AC and DC charging in plain language, show how they work in electric vehicles, and describe when each is used.

What Are AC and DC Power?

Alternating Current (AC) is the type of electricity that comes from power plants and flows through the wires to homes and businesses. It “alternates” by reversing direction hundreds or thousands of times per second. This back-and-forth flow makes AC easy to send long distances and change voltages with transformers. In fact, nearly all national power grids use AC, which is why the sockets in your home or workplace deliver AC power.

Direct Current (DC), on the other hand, flows in a constant direction. Batteries, solar panels, and fuel cells produce DC power because they give a steady output. For example, sunlight hitting a solar panel creates DC electricity, and batteries in devices always store DC. EV batteries are essentially giant battery packs that hold DC energy. In short, household outlets deliver AC, and the battery inside an electric car stores DC.

Because AC and DC behave differently, any time we plug an EV into a standard AC outlet, the car must convert that AC into DC before storing it. This conversion is a key difference between AC charging and DC fast charging, as we explain below.

How EV Charging Works

When you plug an EV into any charger, the goal is to put DC power into the battery. If the charger or outlet supplies AC, the car’s onboard charger (a built-in converter) does the work of changing AC into DC. However, onboard chargers are relatively small and limit how quickly power can flow. That’s why AC charging (using home or public stations) is usually slower.

On the other hand, DC fast chargers have large converters built into the charging station itself. They take AC from the grid, convert it to DC inside the station, and then send the DC straight into the car’s battery. Since the conversion hardware can be much bigger at the station, DC fast charging can deliver far more power in a short time. In other words, AC charging forces the car to convert electricity on its own, while DC charging does the conversion outside the car.

EV experts explain it this way: the car’s onboard converter “transforms AC power into DC to replenish the battery” during an AC charge. With a DC fast charger, the car simply “directly [receives] DC power” because the station has already done the conversion. This bypassing of the onboard converter is why DC charging can fill up the battery much faster.

AC Charging: Slow and Steady

AC charging is the most common way to charge an EV. Almost every electric car owner charges this way at home, at work, or at many public chargers. In North America, AC charging is often called Level 1 (using a standard 120-volt outlet) or Level 2 (using a 240-volt outlet, similar to what dryers use). Other regions have similar voltage levels. When the car is plugged in, its onboard charger handles the conversion to DC.

Because onboard chargers are limited in size, AC charging typically adds energy more slowly. For example, a normal home charger might add 3–11 kilowatts of power, whereas the onboard converter might only handle that maximum. In practical terms, charging from empty to full with AC can take many hours or overnight. That makes AC charging perfect for long dwell times. If you plug in at home overnight, or park at work during the day, AC charging will easily give your car enough energy for the next drive. In fact, as one EV guide notes, AC charging “tends to be more time-consuming” but is “ideal for overnight sessions or during daily activities like work or errands”.

Everyday use: Most people use AC charging for their day-to-day needs because it’s easy and inexpensive. You can even use a regular outlet if needed (Level 1 charging).

Overnight recharges: A typical home wallbox (Level 2) will replenish a depleted EV battery by morning. It provides a steady trickle of power that’s gentle on the battery.

In summary, AC charging is widely available and convenient, but it usually means slower power delivery. This style of charging keeps your car “primed for the journey ahead” as long as you leave it plugged in long enough.

DC Fast Charging: Quick Top-Ups

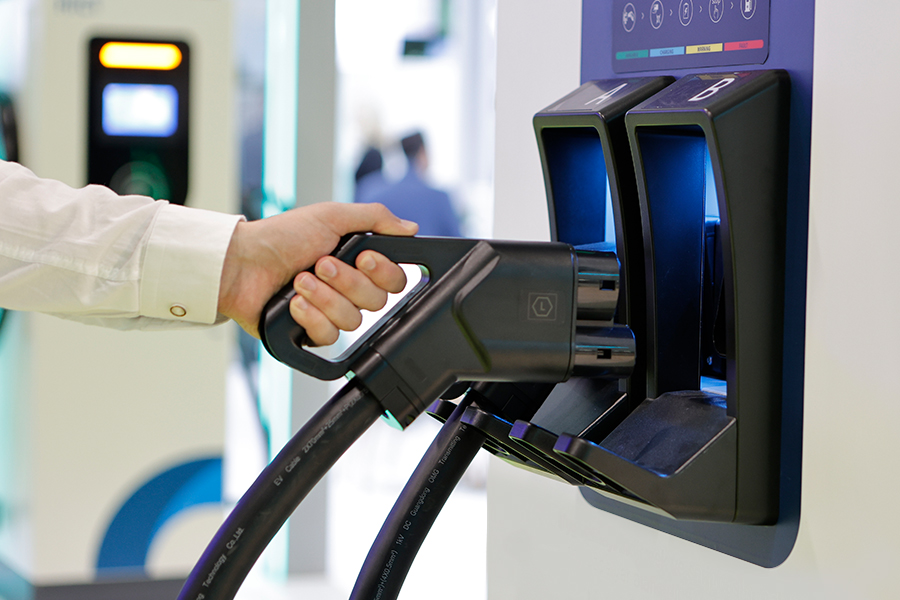

For faster charging, EVs use DC fast charging. These chargers are often called Level 3 or “rapid” chargers. They’re usually found at highway rest stops, gas stations, or other key locations. A DC fast charger can deliver tens or even hundreds of kilowatts of power because it converts AC to DC inside the station itself. Then it sends the high-power DC directly to the battery.

Because DC stations bypass the car’s smaller onboard converter, they can push much more energy at once. The result is a rapid “top-up” of the battery. For example, many DC chargers can fill an EV’s battery from near empty to about 80% in under half an hour. One common rule of thumb is that DC fast charging reaches 80% capacity in roughly 20–30 minutes. After that point, the charging rate slows down to protect the battery (this is normal for all EV charging, AC or DC).

Road trips and quick stops: DC fast chargers are great for long drives. When you need to add a lot of range quickly, you look for a fast charger.

Higher power: Unlike slow AC chargers, DC fast chargers often supply 50 kW, 150 kW, or even 350 kW of power. The exact power depends on the station and the car’s acceptance rate. Not all EVs can take the full power, but even so, DC charging is much faster.

Of course, DC fast charging has trade-offs. The equipment is expensive, so DC chargers are less common than AC ones. They also often cost more to use. Still, for quick fill-ups away from home, DC fast charging is very convenient. As one EV blog puts it, DC fast charging “revolutionizes long-distance travel by offering rapid refuels”.

AC vs DC Charging: A Side-by-Side Comparison

Choosing Between AC and DC

Both AC and DC charging have important roles in the EV ecosystem. AC charging (slow charging) is perfect for predictable daily use. It works with home outlets and regular public chargers. If you come home in the evening and leave your car plugged in overnight, an AC charger will give you plenty of range by morning.

DC charging (fast charging) is best for quick top-ups on the go. Need 200 more miles on a road trip? Stop at a DC fast charger and grab most of that range in 20 minutes. For city driving or routine commutes, you probably won’t need DC very often. But for highway travel or heavy use, having access to fast DC chargers can be a game-changer.

Here’s a quick way to remember the difference:

Power Source: The electrical grid provides AC, and batteries need DC.

Conversion Location: With AC charging, the car does the conversion inside (onboard). With DC charging, the station does it.

Speed: AC charging is slower (good for long, unattended charging sessions). DC charging is much faster (good for shorter stops)

Use Cases: Use AC charging at home or work when you have time. Use DC charging on long trips or when you need a fast refill.

Conclusion

In summary, EV chargers are either AC or DC, and the key difference is where the AC-to-DC conversion happens. Home and public chargers mostly supply AC, which the car converts on board. Fast public chargers supply DC directly, enabling quicker power delivery. As EVBox explains, “the power that comes from the grid is always AC… the energy stored in batteries is always DC”, so understanding this helps explain why AC charging tends to be slower and DC charging faster.

Knowing the strengths of each type helps EV drivers pick the right charging option. Use AC charging for routine, convenient recharging, and rely on DC fast chargers when you’re in a hurry or on the road. With this knowledge, managing your EV’s energy is simpler and more predictable.
